Correlative and time-resolved full-field X-ray diffraction imaging

STROBOS-CODE is a multidisciplinary collaboration in materials research, crystallography, X-ray physics, algorithm development, and image analysis, with partners from two Russian research institutions and two German universities. The goal is the development and optimization of correlative full-field diffraction imaging methods with spatial and temporal resolution and the implementation of two stations with dedicated instrumentation:

  • STROBOS
    Prospective beamline endstation at SIBIR-II at Kurchatov Institute
  • CODE
    Extension of the German-Russian endstation at the IMAGE beamline  at the Synchrotron Radiation Source at KIT  with diffraction contrast capabilities. Designed for high mobility and flexibility, enabling its integration into typical synchrotron beamline instrumentation and infrastructure for user experiments at different facilities.

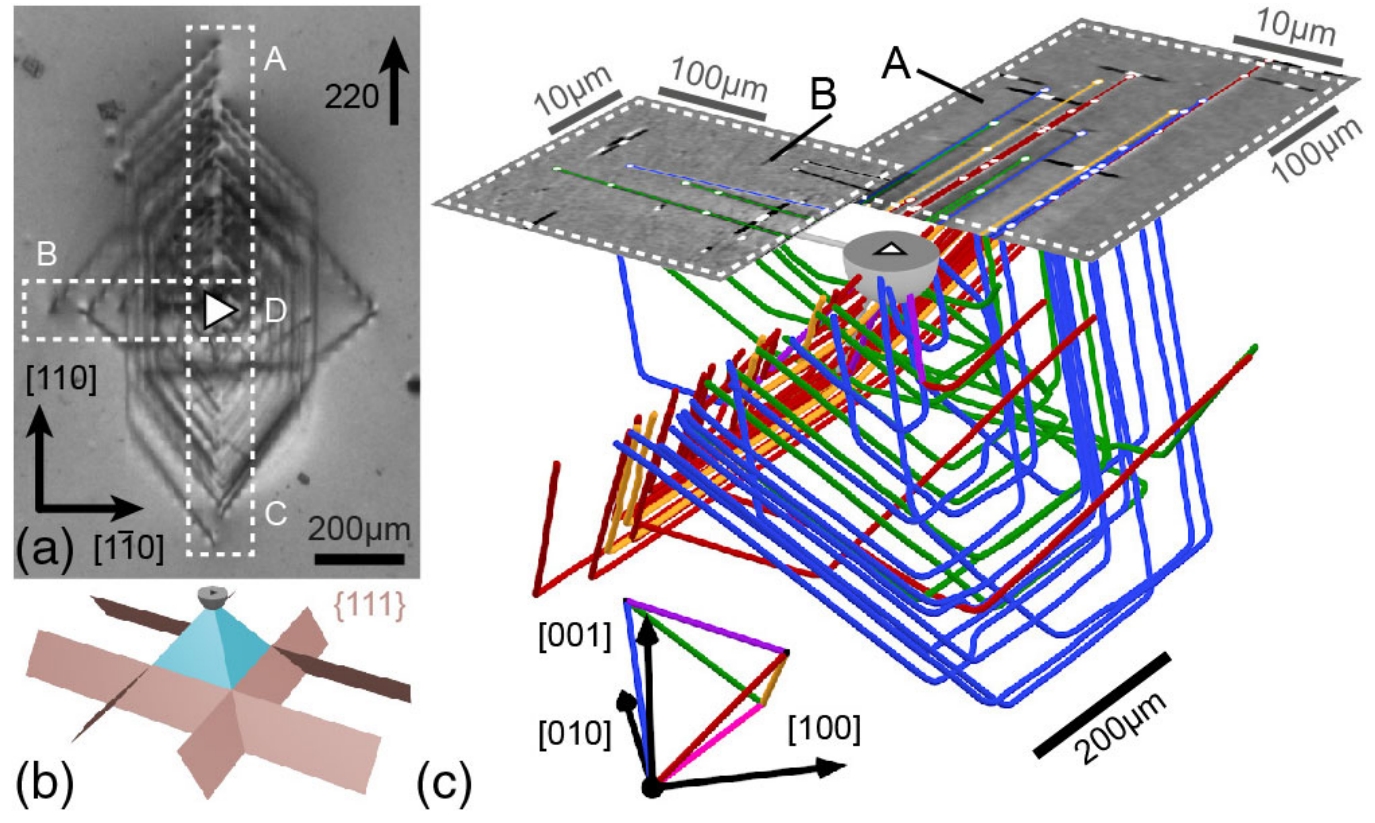

Combining X-ray diffraction laminography, X-ray white-beam topography and circularly polarized visible light differential interference contrast (CDIC) microscopy a complete 3D image of dislocation propagation as a result of mechanical damage (through indentation on the wafer surface, position indicated by the white triangle) can be constructed.






from: Correlated Three-Dimensional Imaging of Dislocations: Insights into the Onset of Thermal Slip in Semiconductor Wafers, Hänschke, D.; Danilewsky, A.; Helfen, L.; Hamann, E.; Baumbach, T.,2017. Physical review letters, 119 (21), Art. Nr.: 215504, doi:10.1103/PhysRevLett.119.215504

Methodical and instrumental development

Development and optimization of diffraction-based full-field X-ray imaging techniques, combining topography, full-field micro-diffraction imaging, diffraction laminography and tomography for correlative spatio-temporally resolved diffraction experiments. In combination with simulations (forward calculation of the measured diffraction contrast, FEM e.g. of thermal and mechanical stresses, dislocation dynamics, etc.) and complementary techniques such as µ-Raman spectroscopy and circular differential interference contrast microscopy (CDIC), the novel synchrotron methodology will enable a new level of comprehensive research studies of crystalline properties on technologically relevant length/time scales as well as under application-relevant conditions.
